MX Series
MX-S3.2PL

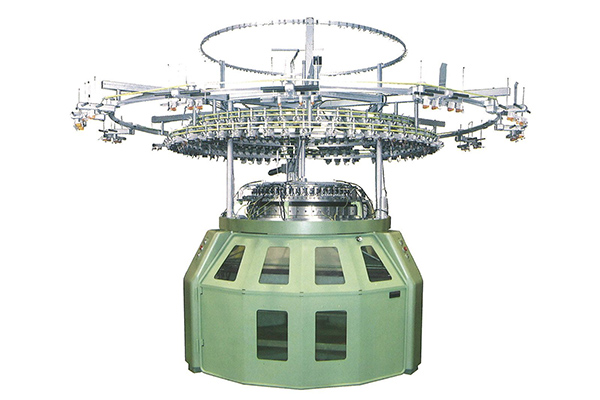

Single Knit Raceway pile machine
By the latest pile knitting theory, producing quality pile fabrics at high speeds Excellent convertibility Stable knitting of elastic yarn plated pile fabrics
Fabric sample
-
STRETCH PLATING PILE
-
PLATING PILE
-
REVERSE PLATING PILE
-
PLATING PILE
Features
-
01High speed fabric production
The latest pile knitting theory has been incorporated into the sinker cams and sinker design by thoroughly studying sinker movement when pile fabric is knitted. Their optimum configurations allow the production of quality pile fabrics at high speeds.
-
02Excellent convertibility
This model can quickly be converted to any of the S3.2 series single jersey machines with the minimum number of replacement parts thanks to our component standardization efforts and allows quick response to ever-changing market demands. The conversion parts for conventional machines can also be used.
-
03Stable knitting of elastic yarn plated pile fabrics
Our lint blowing system* using newly devised yarn carriers for elastic yarn insertion is available as optional parts. This system has resolved the lint accumulation problem with elastic yarn plating for pile fabrics, and thus achieving stable operation.
* Registered as a utility model. -
04Quality fine gauge pile fabrics
Capable of knitting fine gauge (28 gauge) pile fabrics. These open up the possibilities for making luxurious pile fabrics such as graceful velour pile which can only be produced by fine gauge machines and cotton pile having fine texture and smooth handle using fine cotton yarns.
