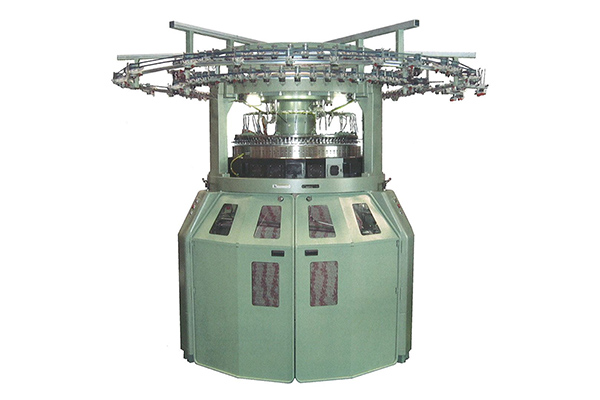

M Series
M-LEC7BS,M-LEC7BSB,M-LEC7BSC,M-LEC7BSD
Double Knit Multi-feeder Electronic Jacquard Machines
- Comprised of 4 models having deferent combinations of needle selection system on the cylinder and cam system on the dial. The most suited model to your requirements can be selected.
- Time-proven SS actuators ensure stable needle selection.
- 36 gauge models (ultra-fine gauge for electronic jacquard machines) optionally available expand their fabric potential for thin and light-weight fabrics.
- Various optional parts are available for varied fabric requirements.
- Compatible with "OD5B", our open width take-up system for double knit machines.
【4 models in the line-up】
Based on M-LEC7BS, the following 4 models having deferent combinations of needle selection system on the cylinder and cam system on the dial are available. The most suited model to your requirements can be selected.
- M-LEC7BS：3-position on the cylinder / 2-race RDS cam system on the dial
- M-LEC7BSB：2-position on the cylinder / 2-race RDS cam system on the dial
- M-LEC7BSC：2-position on the cylinder / 2-race exchange cam system on the dial
- M-LEC7BSD：3-position on the cylinder / 2-race exchange cam system on the dial
Fabric sample(M-LEC7BSD)
-
2-COLOUR FINE JACQUARD
-
TUCK JACQUARD
-
TUCK JACQUARD
-
QUILTING
Fabric sample(M-LEC7BSC)
-
QUILTING
-
QUILTING
-
QUILTING
Features
-
01High performance SS actuators
The "Individual needle selection system" on the cylinder ensures stable and reliable 2-position (K-W) or 3-position (K, T, W) needle selection depending on the machine model.
-
02Highly productive electronic jacquard machines
This series having multi-feeders (72 feeders on 30" and 84 feeders on 38") has achieved high productivity on electronic jacquard machines. Models M-LEC7BSC and 7BSD having 2-race exchange cam system on the dial can operate higher speeds and thus further improve productivity.
-
03Colour LCD touch-panel for the operation panel
The high-luminance and clear colour LCD using user-friendly icons for each function greatly reduces the chance of making mistakes in entering and confirming data
-
04Ultra fine gauge, 36G, double knit electronic jacquard machines
High performance SS-actuators ensure stable 3-position needle selection on 36 gauge machines. The 2-race exchange cam system on the dial used on M-LEC7BSC and 7BSD is suitable for producing quality and ultra-fine gauge fabrics.
-
05Compatible with OD5B open-width take-up system (optional when ordering)
This series can be mounted on our OD5B open-width take-up frame. This is the ultimate solution for the center crease problem on elastomeric plated fabrics and fabrics using delicate multi-filament yarns.
-
06Various optional parts
A variety of optional parts offer the possibility to knit a wide range of fabrics such as elastomeric plated fabrics, quilted fabrics, spacer fabrics. Interlock gating for producing plain fabrics is also possible by replacing the parts for the needle selection system with optional parts.
