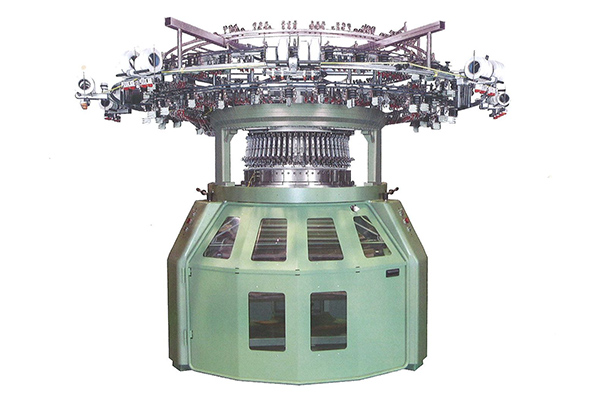

M-FY3,M-FY4,M-FY6

01High performance and slim F-type 3-colour auto-stripers

• Suitable for double knit multi-feeder machines.
• The flip-up mechanism makes clear of the knitting head and this greatly facilitates threading, fabric pressing-on, cleaning, etc.
• Random multi-finger operation where multiple fingers feed yarns at the same time is possible.

02Greatly improved productivity

• The large number of feeds on double knit striper machines. (60 feeds on 30")
• Increased number of feeds and higher machine speeds allow greatly improved productivity.

03Stable operation at high speeds

• Semi-closed cam system (stitch cam/raising cam separated type) installed on the cylinder and dial ensures stable operation at high speeds.
• Exchange cam system for knit, tuck & welt on both the cylinder and dial.

04Cam timing can be changed by replacing cams

Delayed or synchronized timing can be selected by changing the cylinder stitch cams.:
Cams for delayed and synchronized timing supplied as standard for 12G ~19G machines (Rib specification) and Cams for delayed timing supplied as standard for 20G~28G (Interlock specification).

05Quick dial/cylinder change

One day is enough for changing cylinder/dial thanks to the reduced numbers of parts related to cylinder/dial change.

06Easy and reliable elastomeric yarn feeding (optional)

• Elastomeric yarns are supplied via guide rollers. There is no lint accumulation in and around the elastomeric yarn paths.
