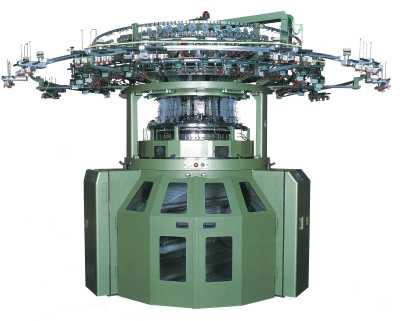

VX-SECWY,VX-SECWY6
| Electronic Jacquard Machine with a Wrap Insertion Mechanism and 4(6)-color Auto-stripers | |
 |
|
| These models have been developed based on our multi-feed electronic jacquard machine having 72 feeds. VX-SECWY has newly developed 4-color auto-stripers while VX-SECWY6 has 6-color auto-stripers. These stripers have opened up almost unlimited possibilities for striped fabrics. | |
| 【Main functions and features】 | |
| ＜SS Actuator＞ | |
| ・Stable 3-position needle selection is realized by the compact and high-performance
SS-actuators fitted for all feeds. ・These models can be used as ordinary electronic jacquard machines when not using the wrapping facilities. |
|
| ＜F-type 4(6) color auto striper＞ | |
| ・4 striper units are provided in the standard setup and up to 24 units
can be installed (for 30"). If the wrapping facilities are not used,
maximum 36 units can be installed (for 30"). ・The flip-up mechanism for the striper unit has greatly improved user-friendliness. ・The catch and release method eliminates cut yarn debris when striping and also facilitates threading work. ・"Random multi-finger" function allowing plural fingers to feed yarns at the same time is possible. |
|
| ＜Plated fabric capabilities＞ | |
| ・Various kinds of elastic yarn plated and hard yarn plated fabrics can be knitted with optional parts. | |
| ＜Color LCD touch panel for easy operation＞ | |
| ・The high-luminance and clear color LCD greatly reduces the chance of making
mistakes in entering and confirming machine data, striper data, etc. ・The entered data is read by the FD drive installed in the operation panel and then transferred to the controller. |
|
| Fabric Samples(VX-SECWY) | |
 WRAP INSERTION 2-COLOUR JACQUARD |
 WRAP INSERTION SINGLE JERSEY |
 WRAP INSERTION 2-COLOUR JACQUARD |
 WRAP INSERTION SPANDEX PLATING |
| Fabric Samples(VX-SECWY6) | |
 WRAP INSERTION STRUCTURE PATTERN |
 WRAP INSERTION PLAIN / TUCK |
 WRAP INSERTION PIQUE / TUCK |
 WRAP INSERTION PIQUE / TUCK |
